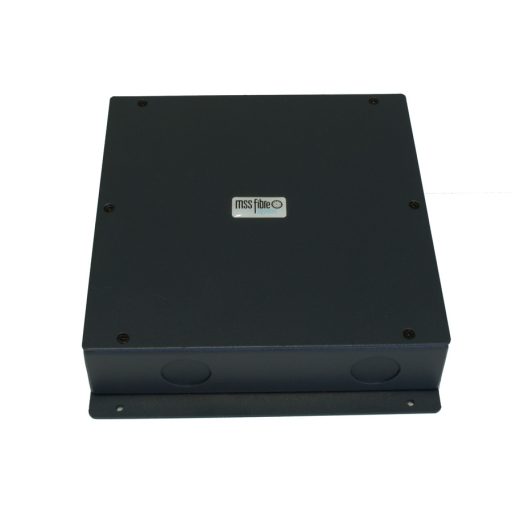

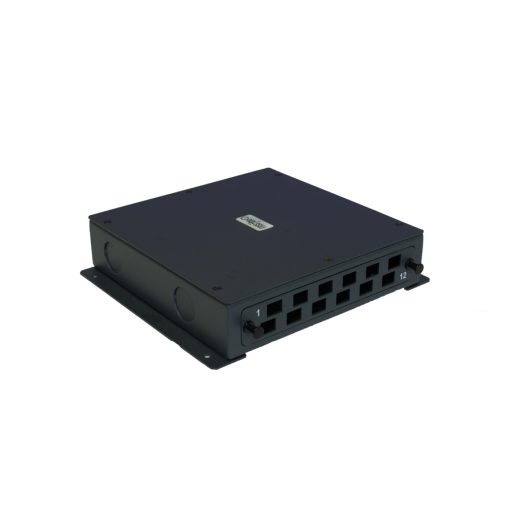

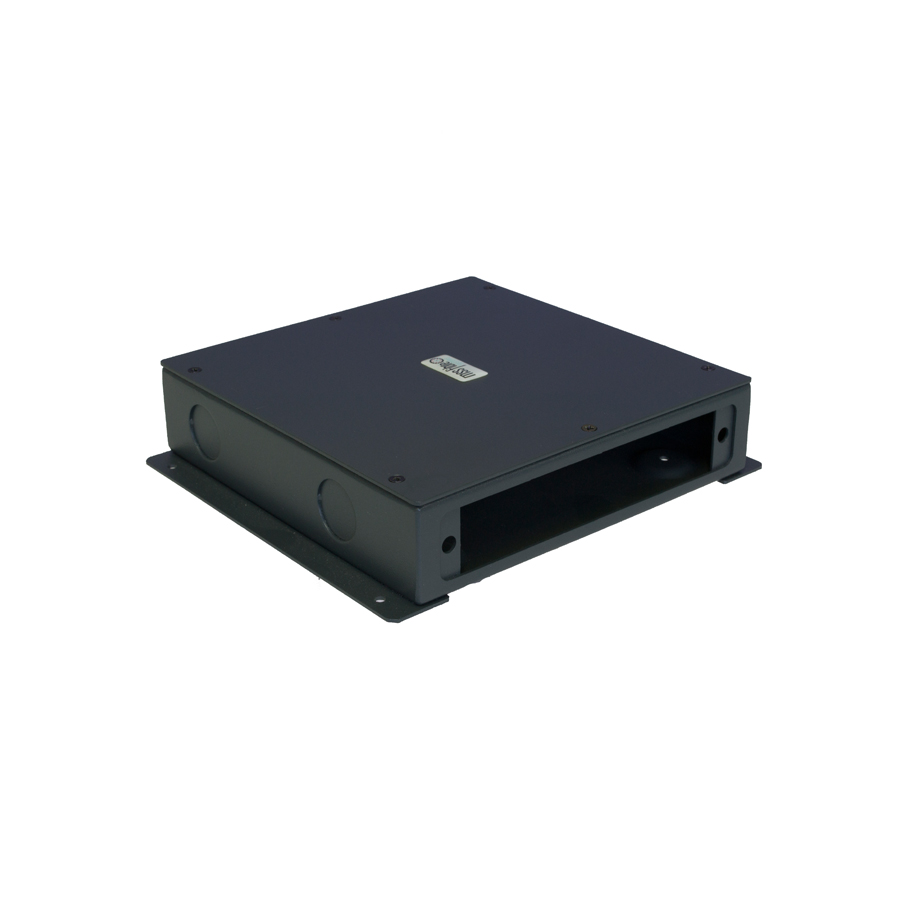

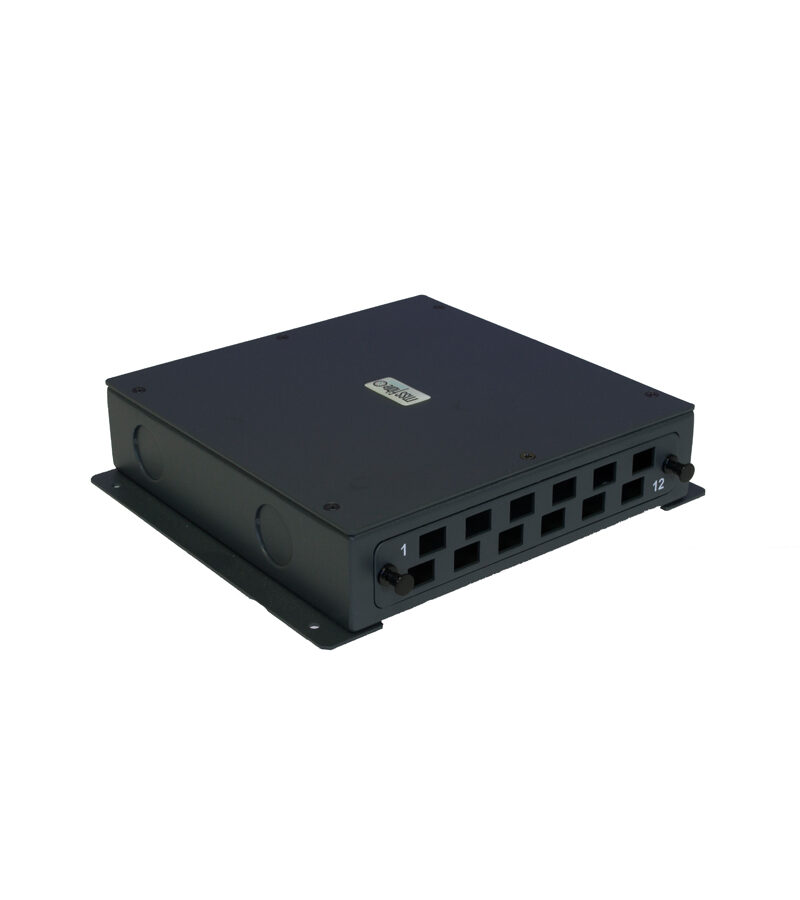

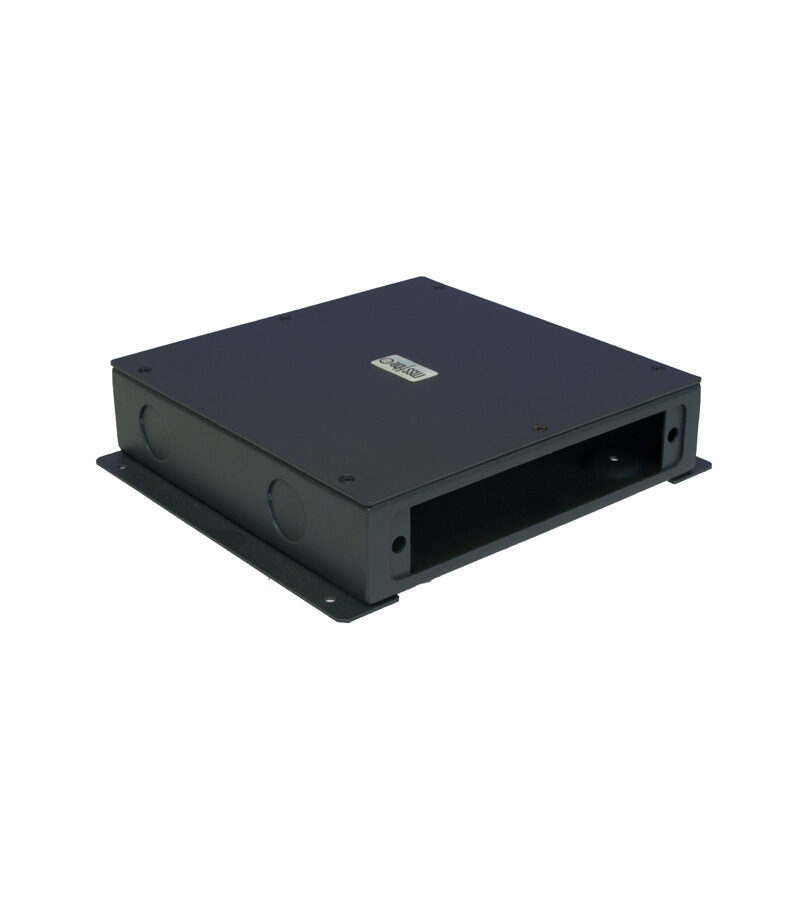

FOBOT Small Wall Mount Enclosure – Optical Termination (12-S / 24-D)

FOBOT Small Wall Mount Enclosure – Optical Termination

Small Wall Mount Enclosures offer the installer a compact and heavy duty solution for cable management and fibre termination. Ideal when space is limited or project does not require a complex enclosure. Its modular design provides the flexibility to choose from a variety of thru-adaptor types including ST, SC duplex, FC, LC and MTRJ.

Features

• Tough and Durable, Small compact design
• Size 207 x 207 x 43.6mm (HxWxD)
• Single panel capacity
• Accommodates up to 12 Simplex or 24 Duplex fibres
• Access via screw lid
• 20mm gland holes
• Utilises modular coupler panels to suit your connector type (see coupler panels)

Panel Option / Cores

• SC-Simplex (6 Port 6 Fibre) or  (12 Port 12 Fibre)
• SC-Duplex (6 Port 12 Fibre)
• LC-Duplex (12 Port 24 Fibre)
