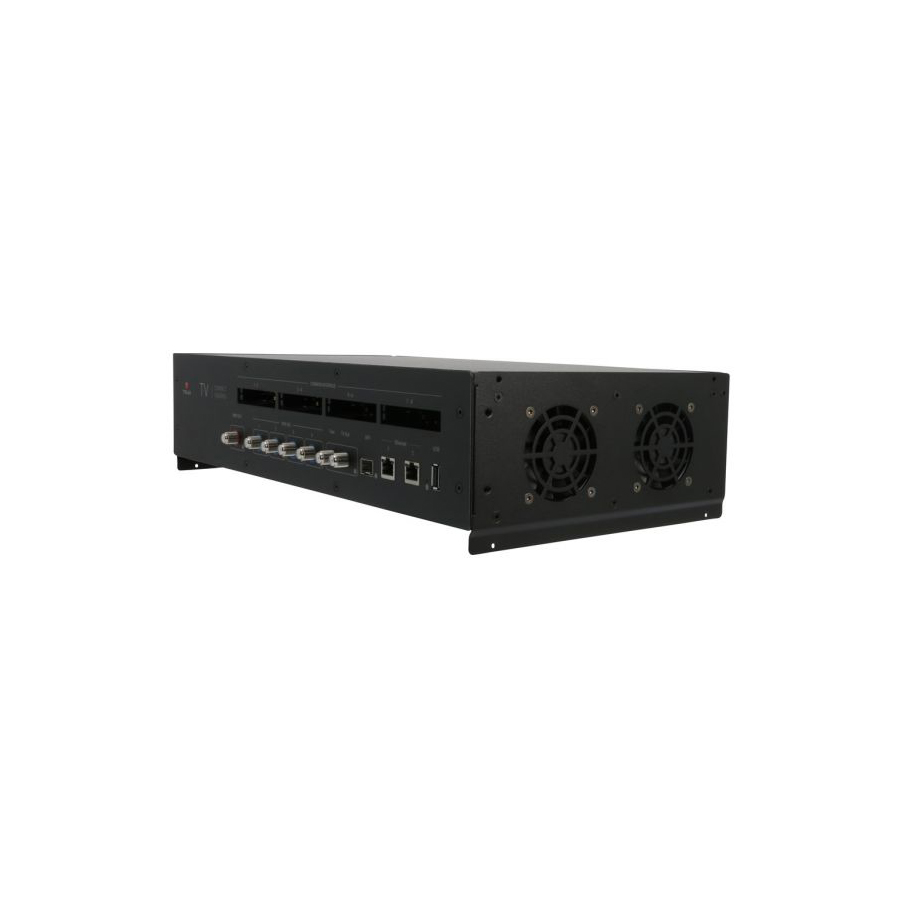

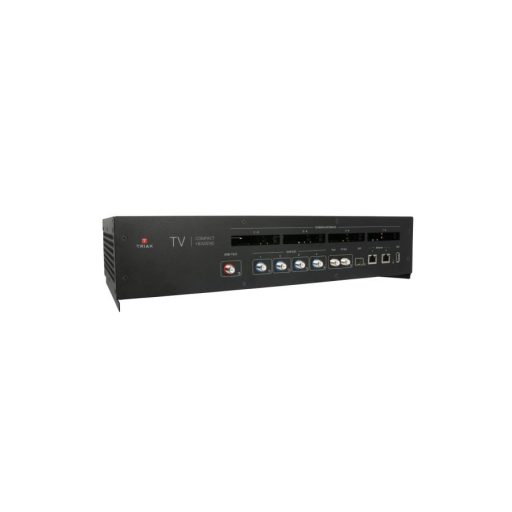

TRIAX 492782 TDcH 22STC-I DVB-S/S2 & DVB-T to DVB-T/C Compact Headend with 8xCI Interfaces

Triax TDcH 22STC-I 492782 DVB-S/S2, DVB-T/T2 and DVB-C conversion to QAM or COFDM (switchable) with the possibility to decrypt services centrally in the headend.
Built for both wall mounting and 19” racks and equipped with 4 DVB-S/S2 inputs, 1 DVB-T/T2/C input, 16 DVB-S2X tuners, 6 DVB-T/T2/C tuners, 16 QAM or COFDM (switchable) modulators and 8 CI slots.
The TDcH compact headend is optimised and engineered to meet specific TV distribution requirements in hospitality, multi-dwelling units and related sectors with an appealing, competitive cost per service ratio.
Our brand new, intuitive platform smoothly integrates easy installation, an elegant graphical user interface, central decryption, remote access, and straightforward TV service updates with LCN.

Features

• 4 x SAT IF inputs with integrated multi-switch
• 1 x Terr / Cable input with integrated splitter
• 16 x DVB-S2 tuners
• 6 x DVB-T/T2/C tuners
• 8 x CI interfaces
• 16 x QAM or UHF COFDM full band modulators
• Electronically adjustable output level
• Suitable for adjacent channels
• Symbol rates and modulation individually adjustable
• Multiplexing & IP pool
• TV-Service Multiplexing from all inputs at each output transponder to optimize available bandwidth
• TV-Service Multiplexing at the CA-modules to reduce amount of CAM’s
• Integrated Satellite Channel Router (SCR) multiswitch*
• Reception of up to 4 satellite positions with each 2 polarizations and 2 frequency bands
• Transport Stream Processing
• Network Information Table (NIT) for complete headend station
• LCN (Logical Channel Numbering)
• SID, TSID and ONID management
• Distribute TV services multiple times with different languages
• EPG management
  To manage the amount of EPG-data distributed in an output transponder
  To support TVs with EPG data from all TV services without the need of retuning all transponders
• Service Filtering with the option for;
  Remove unwanted services
  Remove services for minimize data rate-
• Real time output load measurement
• Dashboard
• System information and overview without login
• HTML user interface via self-signed HTTPS
