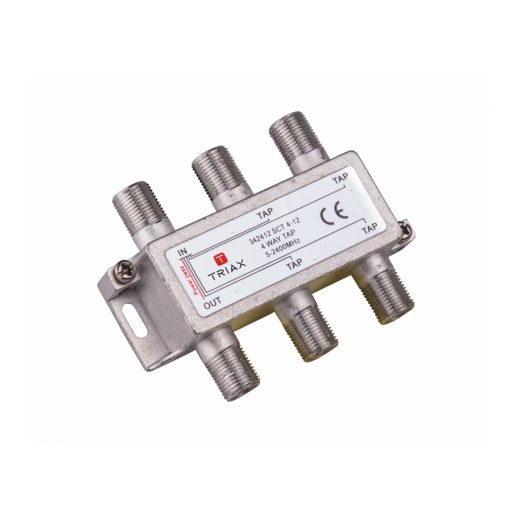

TRIAX SCT Silver Series 4 Way TAPS 5~2400MHz F-Type

Triax SCT Silver Series 2.4GHz 4 Way TAP: Available TAP Value 12, 16, 20, 24dB 5-2400MHz, DC/AC Pass

2-Way TAP/Coupler

• T-SCT412 12 dB 4.3 dB
• T-SCT416 16 dB 3.2 dB
• T-SCT420 20 dB 1.7 dB
• T-SCT424 24 dB 1.8 dB

Common Features

• Special performance for use in SAT-IF and MATV distribution networks
• Frequency range 5 MHz up to 2.4 GHz
• DC/AC pass trough max. 25 V/0,5 A over all IN-OUT paths, outputs of splitters DC decoubled by diodes
• High shielding of 110 dB
• Return loss Grade 3
• F- female connectors
• High-quality die cast housing tin (SN) coated
• Optional plastic brackets for passing the cable under the product
