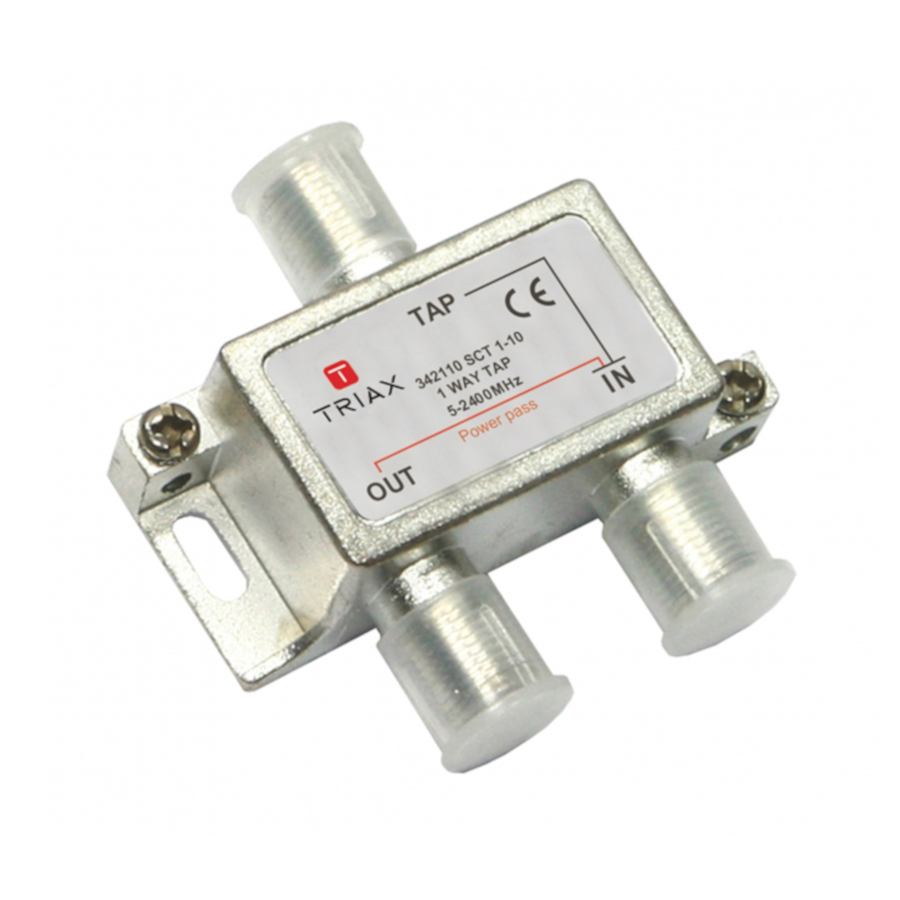

TRIAX SCT Silver Series 1 Way TAPS 5~2400MHz F-Type

Triax SCT Silver Series 2.4GHz 1 Way TAP: Available TAP Value 10, 12, 16, 20, 24dB (5-2400MHz, DC/AC Pass

1-Way TAP/Coupler

• T-SCT110 10 dB 2.5 dB
• T-SCT112 12 dB 2.3 dB
• T-SCT116 16 dB 1.9 dB
• T-SCT120 20 dB 1.5 dB
• T-SCT124 24 dB 1.5 dB

Common Features

• Special performance for use in SAT-IF and MATV distribution networks
• Frequency range 5 MHz up to 2.4 GHz
• DC/AC pass trough max. 25 V/0,5 A over all IN-OUT paths, outputs of splitters DC decoubled by diodes
• High shielding of 110 dB
• Return loss Grade 3
• F- female connectors
• High-quality die cast housing tin (SN) coated
• Optional plastic brackets for passing the cable under the product
