TRIAX SCS Silver Series Splitter 2,3,4,6&8 Way 5~2400MHz F-Type

Name: TRIAX SCS Silver Series Splitter 2,3,4,6&amp;8 Way 5~2400MHz F-Type
SKU: S-SCSxx
Availability: InStock

$6.60 – $20.90

Splitters

Clear

TRIAX SCS Silver Series Splitter 2,3,4,6&8 Way 5~2400MHz F-Type quantity

Add to Saved Products

SKU: S-SCSxx Category: Splitters & TAPS Tag: TRIAX

Description
Additional information
DOWNLOAD

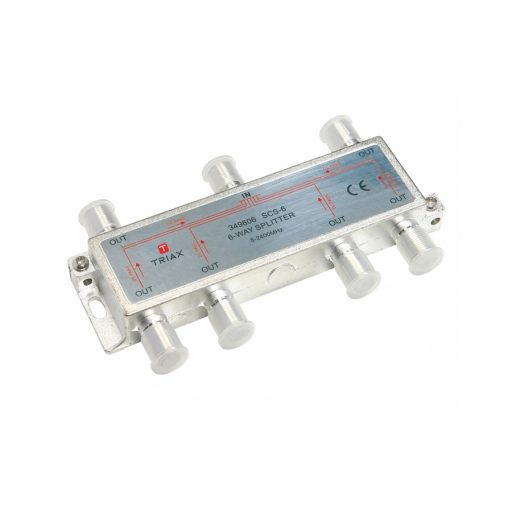

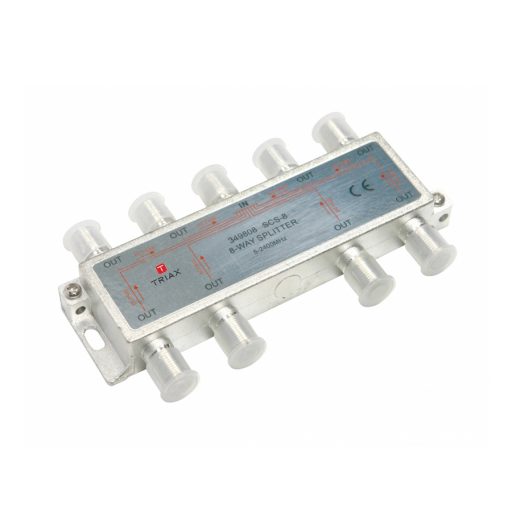

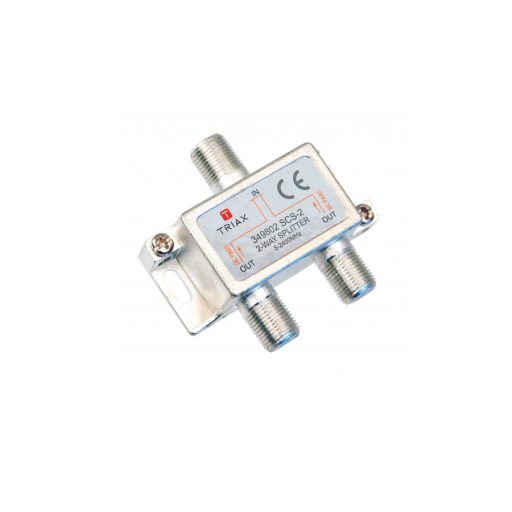

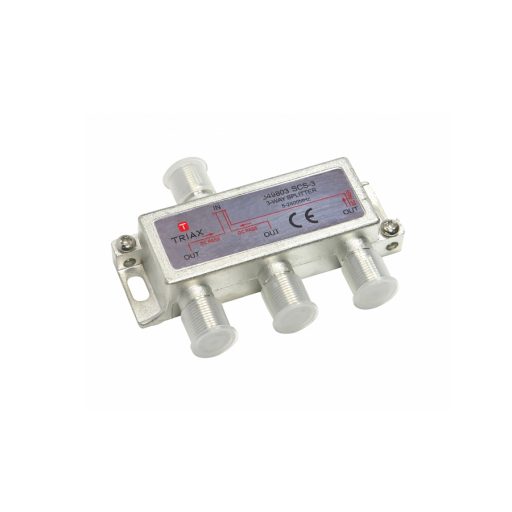

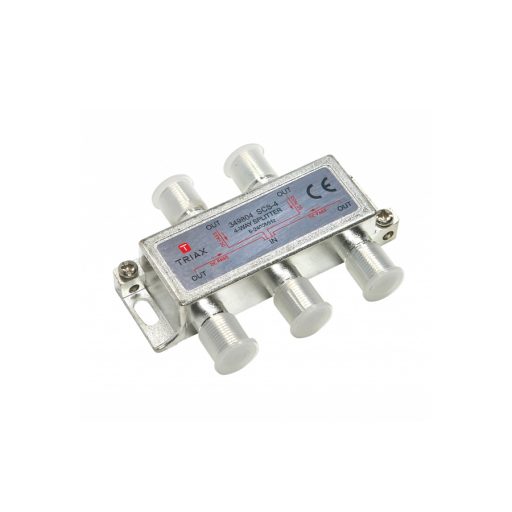

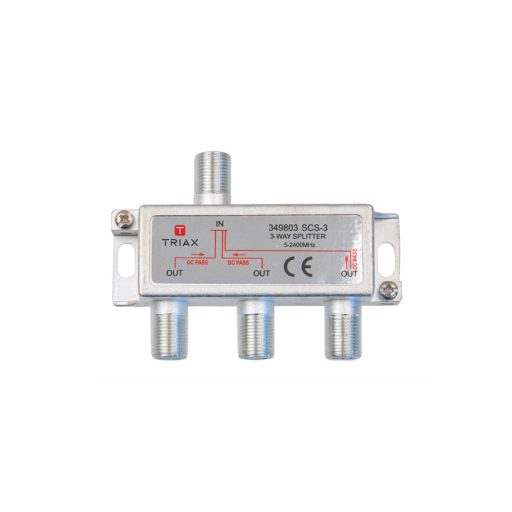

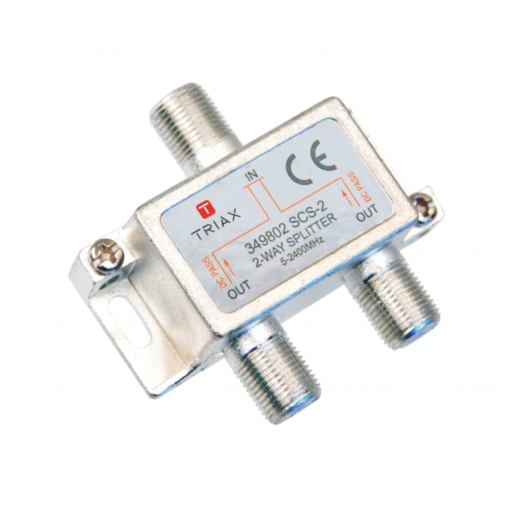

Triax SCS Silver Series 2.4GHz Splitter: 2, 3, 4, 6 & 8 Way (5-2400MHz, DC/AC Pass, Loss 5.5dB @ 2.15GHz)

Common Features

Special performance for use in SAT-IF and MATV distribution networks
Frequency range 5 MHz up to 2.4 GHz
DC/AC pass trough max. 25 V/0,5 A over all IN-OUT paths, outputs of splitters DC decoubled by diodes
High shielding of 110 dB
Return loss Grade 3
F- female connectors
High-quality die cast housing tin (SN) coated
Optional plastic brackets for passing the cable under the product
