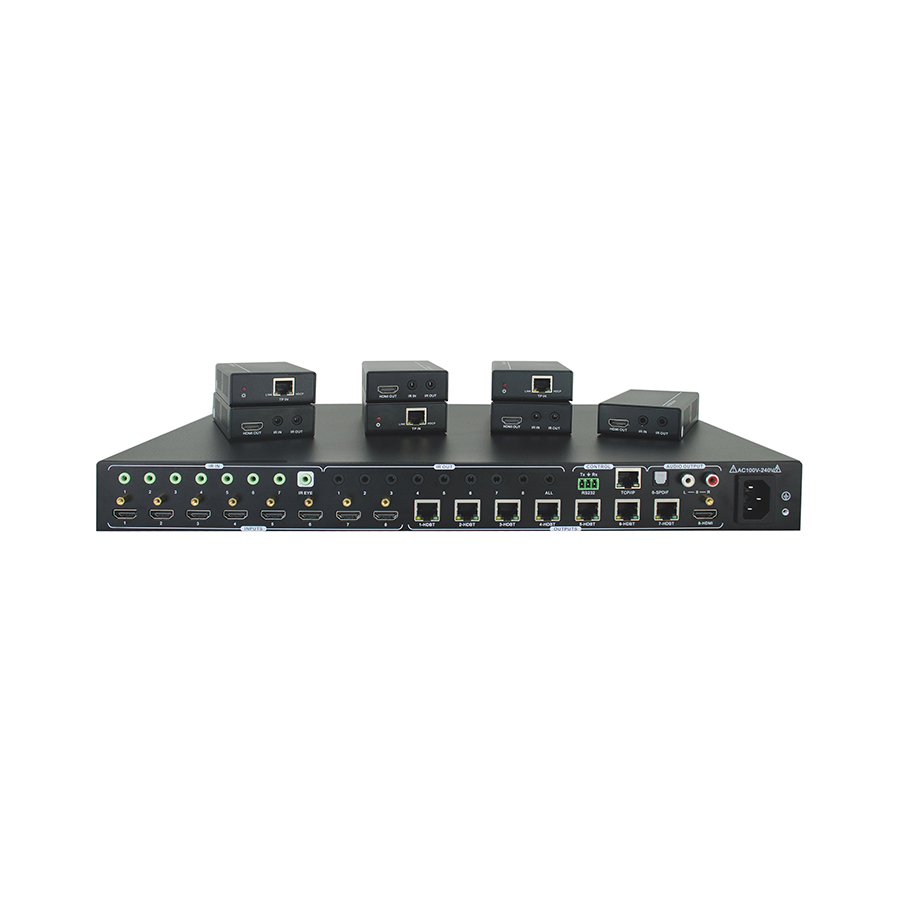

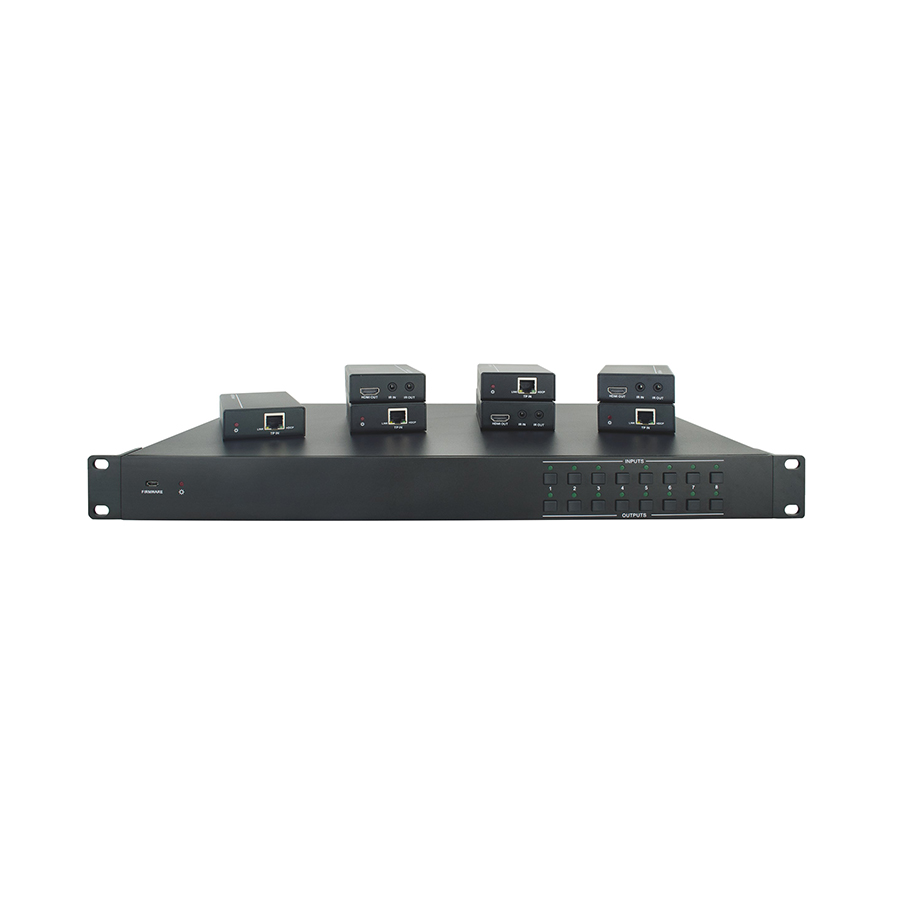

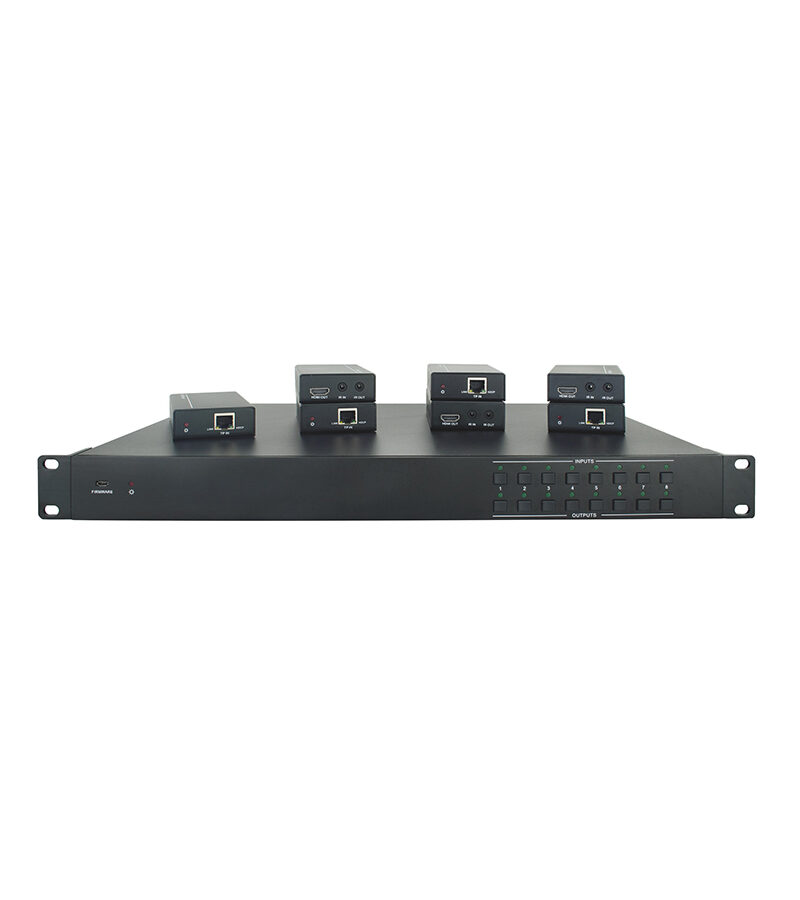

TRAIX HMX 871 HDBaseT 4K UHD 8 Source, 1xHDMI 7xHDBaseT, Matrix Kit

Enables 4K content from 8 HDMI devices to be viewed and controlled simultaneously at 8 locations.

Kit includes

• 1x 4K HMX871 Matrix
• 8x Remote controls
• 8x IR Receivers
• 8x IR Emitters
• 1x RS232 Cable
• 7x HDBaseT Receivers
• 1x Power adapter

Advantages

•  HDBaseT Matrix Switcher featuring 7 HDBaseT outputs and 1 HDMI output
• Supports HDCP 2.2, and is backwards compatible with previous versions of HDCP and HDMI
• Transmits 4Kx2K @ 60Hz 4:2:0 up to 26 ft. (8m) via HDMI port and 131 ft. (40m) via HDBaseT port
• 7 HDBaseT outputs with distances up to 230 ft. (70m) at 1080p and 131 ft. (40m) at 4Kx2K on a single Cat5e/6 cable
• HDBaseT Receivers are powered by the matrix using PoC technology
• LED indicators show real-time switching status
• Controllable via front panel, RS232, IR and TCP/IP
• „Built-in GUI for TCP/IP control and setup
• Powerful EDID management
• Support CEC to control far-end display devices via RS232 commands
• Features Micro USB port for firmware upgrades
• Easy installation with rack-mounting design, mounting hardware included
• Power Supply: Matrix Unit, AC100V~ 240V; Receivers, PoC

HMX 871 4K Kit
