Roversat TAB5Lite – Terrestrial, Cable & Satellite Field Meter

RoverSat TAB5 Lite  – 5″ TFT TOUCH Screen Field Meter Spectrum Analyser – TV/SAT/CABLE

SPECIAL FUNCTIONS

• Exclusive patented ROVER AUTODISCOVERY system: auto-matically detects and selects analog and digital COFDM/QAM TV signals in both measurement and spectrum mode;
• Automatically identifies all the signals with digital modulation SAT- TV & CATV;
• Automatic Assistant: Signal quality analysis, channel scan memorization;
• Barscan TV & CATV function from 10 to 100 channels on one screen.
• Buzzer & noise margin real time graph for digital signals microinterruptions;
• Reflectometric measurements APP (opt.);
• SATELITE: DiSEqC – SCR & dCSS commands, SAT finder & SAT expert functions;
• Custom channel plans: 25 (199 ch. per plan), programmable TV, SAT (or combined TV/SAT) by PC or local keyboard;
• Loggers: TV, SAT & combined with stop & go function;
• SAT Memory Plan: More than 2.000 transponders prememorized for world wide satellite;
• Free SMART PC interface program and FW upgrades.

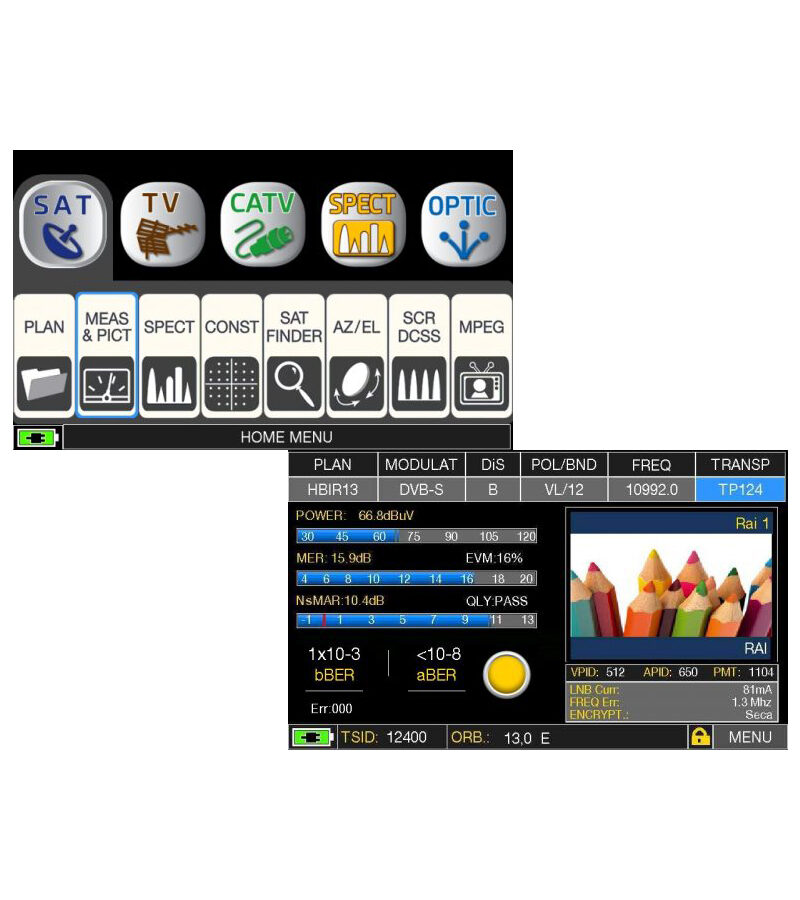

SPECIFICATIONS: MEASUREMENTS, SPECTRUM ANALYSIS & PICTURES

• Frequency Range: TV, CATV & Radio: 30-1000 MHz; SAT: 700–2700 MHz;
• Frequency resolution: TV & CATV 25 KHz; SAT: 5 MHz;
• Power range meas.: TV 35 to 115 dBμV, SAT 5 to 105 dBμV;
• Digital Meas: Digital power, MER (36 to 40 dB max depending on modulation), BER, PER, LDPC, BCH, Noise Margin, MER versus CARRIER;
• Measurement resolution: 0.1 dB;
• Level measurement accuracy: 1 dB typ. (2 dB max.);
• Resolution Filter Bandwidth: TV & CATV: 100 KHz @ -3 dB; SAT: 5 MHz @ -3 dB;
• Constellation: for TV/CATV and SAT signals;

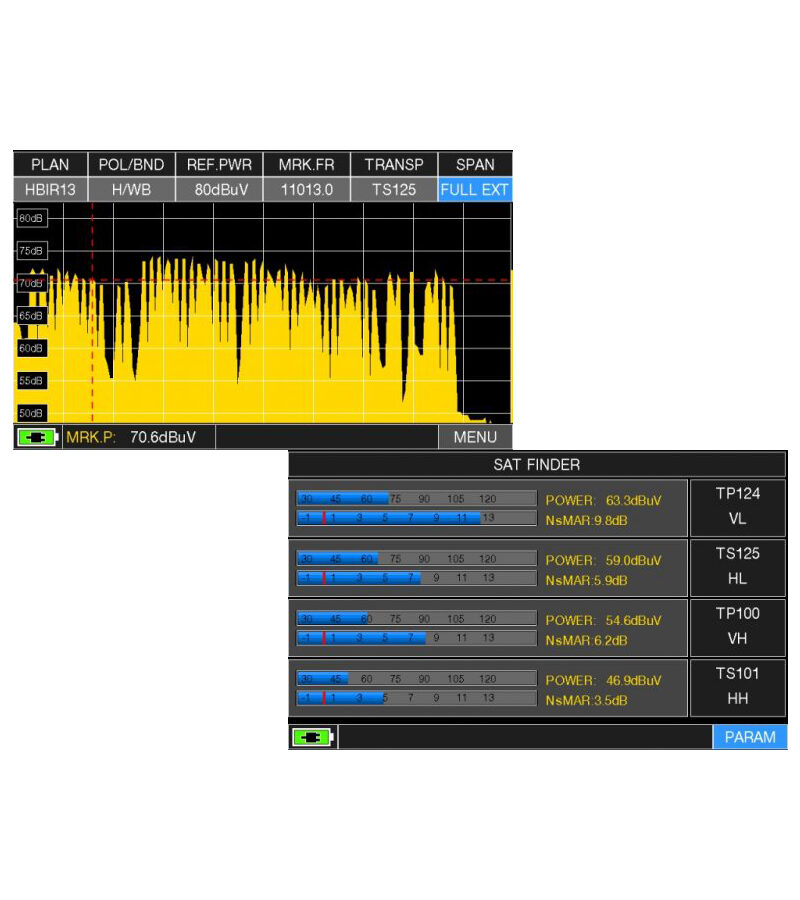

• Spectrum: Fast spectrum, max hold and spectrum memorization with real time compare function;
• Net-id on board: Net-id, NID, TSID, LCN, SAT orbit position;
• Echoes, Pre-echoes, Micro-echoes: Representation in real time;
• Quality: Digital Auto quality Test: PASS-MARGINAL-FAIL;
• Digital Pictures: MPEG2-4 SD & HD, pictures with program list, Audio Video PIDs, LCN, Video bit Rate all on one screen.

COMM. PORTS AND OUTPUTS

• RF Input : 75 ohm interchangeable “F”;
• USB 2.0: Type B (PC Interface);
• Audio: AAC supplied, DOLBY (opt.);
• Video: Composite video input.

GENERAL SPECIFICATIONS

• 5” TFT TOUCH display: 16:9 high resolution and high brightness;
• Power supply: Built in LiPo battery with 2 to 4 hours duration (depending on the function) & battery test function;
• DC voltage at RF input: 5 – 12 – 18 & 24 VDC, DiSEqC – SCR & dCSS commands;
• PC Interface: USB-B;
• Front-Panel: Alpha numeric keypad;
• Power Save: TFT backlight timer, brightness adj;
• PC Management: SMART software;
• Weight: only 1,4 Kg with batteries;
• Size: H 13,0 x W 25,5 x D 4 cm;
• Housing: Aluminium and Steel and Light bag. (Elite bag with extra pdding optional.)
