Promax HD Ranger ECO Universal TV Analyzer, 7” TFT 16:9 Screen, DVB-T/T2, DVB-C/C2, DVB-S/S2, Mpeg2&4

Name: Promax HD Ranger ECO Universal TV Analyzer, 7” TFT 16:9 Screen, DVB-T/T2, DVB-C/C2, DVB-S/S2, Mpeg2&amp;4
SKU: Promax-HDRgr/ECO
Price: 5129.00 AUD
Availability: InStock

$5,641.90 Inc. GST

Add to Saved Products

SKU: Promax-HDRgr/ECO Category: Test & Measurement Tags: Meters, Promax

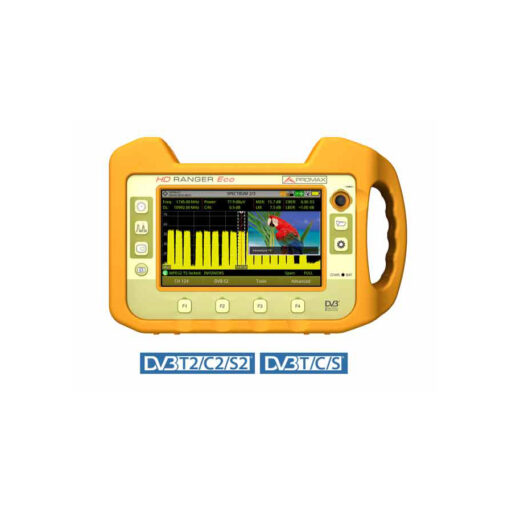

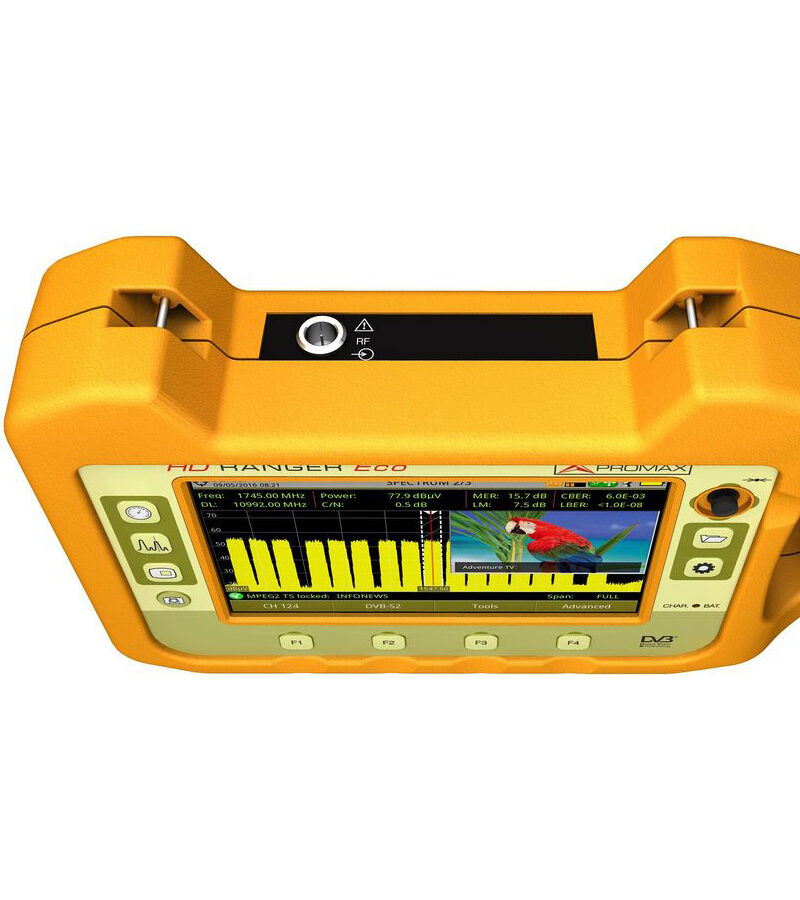

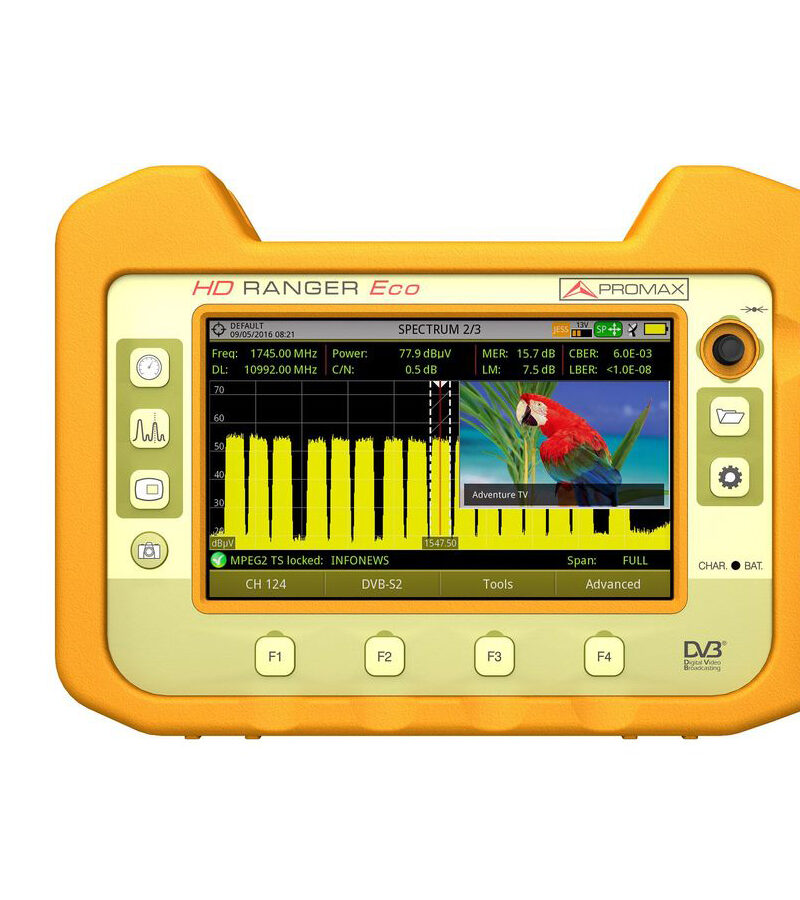

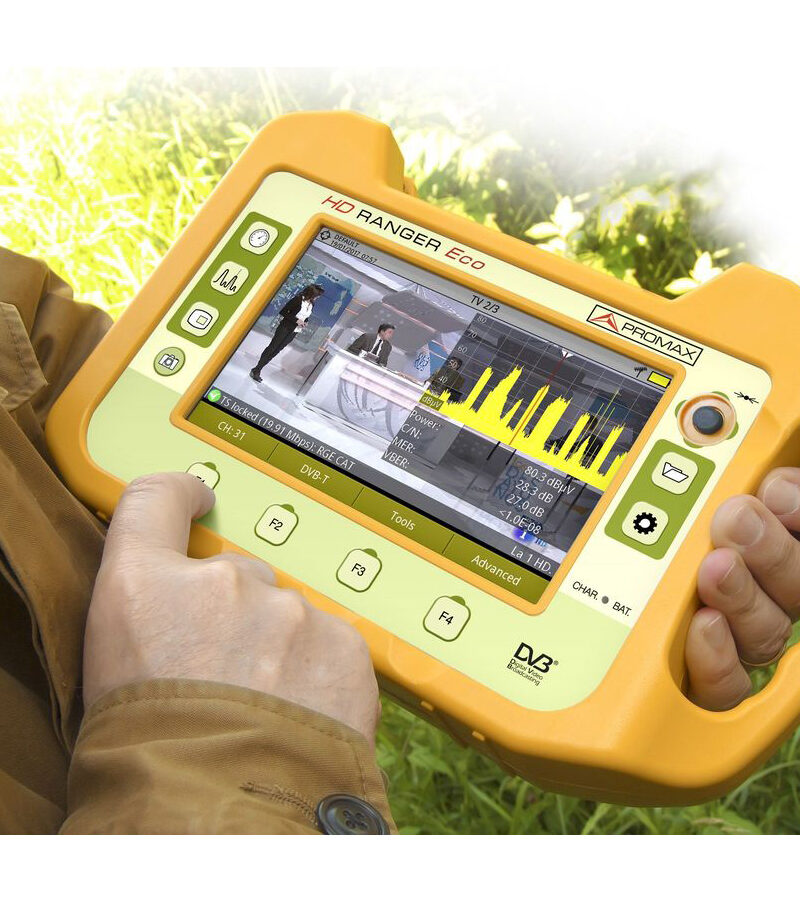

Promax HD Ranger ECO” Universal TV Analyzer, 7” TFT 16:9 Screen, DVB-T/T2, DVB-C/C2, DVB-S/S2, Mpeg2&4

The HD RANGER Eco is the most affordable of our entry-level Field Strength Meters and Spectrum Analyzers. It is ideal for those installers who mostly do classic installation work involving DVB-T2/C2/S2, DVB-T/C/S with MPEG-2 as well as MPEG-4 video. Powerful and fast spectrum analyzer well beyond that of other analyzers in its class.

DIGITAL STANDARDS	DVB-T, DVB-T2 DVB-C, DVB-C2 DVB-S, DVB-S2, DVB-S2 multistream DSS

VIDEO CODECS	MPEG-2, MPEG-4 H.264

AUDIO CODECS	MPEG-1, MPEG-2, HE-AAC

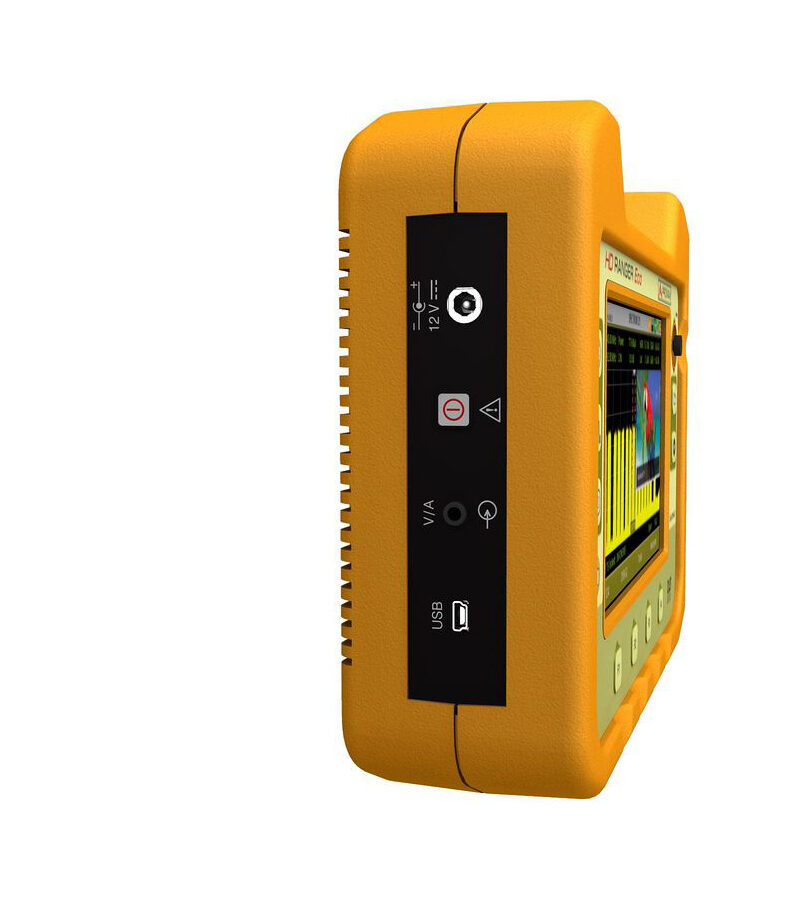

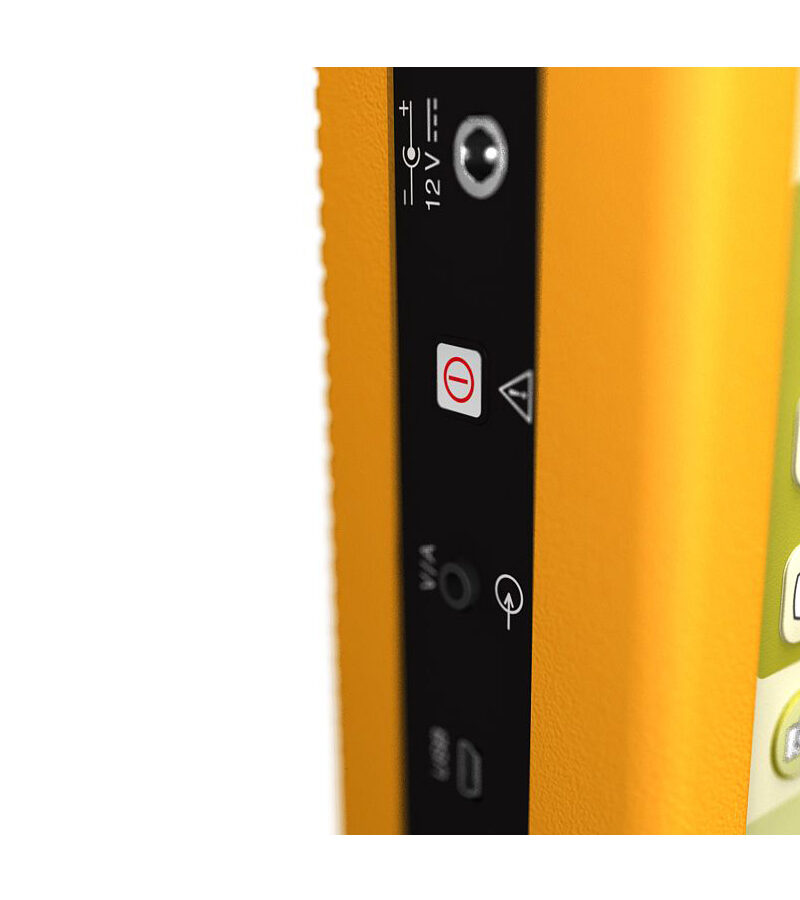

INPUTS AND OUTPUTS	Universal RF connector 75 Ω Analogue Video/Audio input USB for data tranferring

FUNCTIONS	Constellation diagram LTE Dynamic echoes analysis StealthID (instant identification of tuning parameters) PLS (Physical Layer Scrambling) Ultra fast spectrum analyser (70 ms sweeping time) with MAX/MIN hold FM radio measurements and decoding Screenshots and Datalogger for measurement reports DVB-S2 multistream Field strength Task planner

PC CONNECTION	NetUpdate 4 (free software) Free and automatic firmware updates User customised channel plans Measurement reports and screenshots

Weight	3 kg
Dimensions	40 × 30 × 15 cm

Available downloads for this item:

Click to view - Promax HD Ranger ECO DATA Sheet

Click to view - Promax HD Ranger ECO Manual

Click to view - Promax HD Ranger ECO – Quick Guide
