Norsat Band Pass C-Band 5G Interference Fliter
$614.90
Norsat C-band 5G Interference Waveguide Filter BPF-C
Norsat’s C-band 5G Interference bandpass filter has been tested extensively and can be used to remove sources of interference from 5G signals. If these unwanted spurious signals are not removed, they can cause problems such as intermodulation products and LNB saturation. Norsat’s C-band bandpass filter features a broad passband with low insertion loss, steep skirts that roll off quickly, and high stopband rejection.
- Easily installed between the feed and LNB
- Suitable for use with Norsat’s C-Band LNBs
- Environmentally sealed and moisture resistant (IP66)
- Rejects C-band terrestrial interference
Models
FL-BPF/C1
Pass Range: 3.70 – 4.2 GHz
VSWR: 1.4:1 max
Insert Loss: 0.5dB max

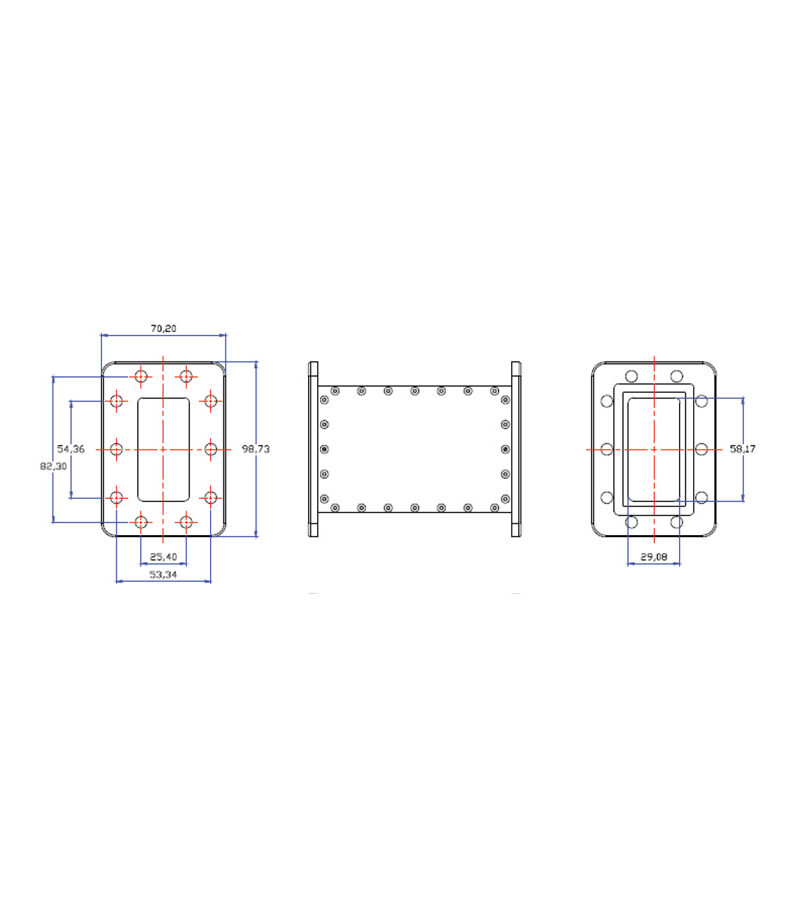

Flange: CPR-229G In/Out

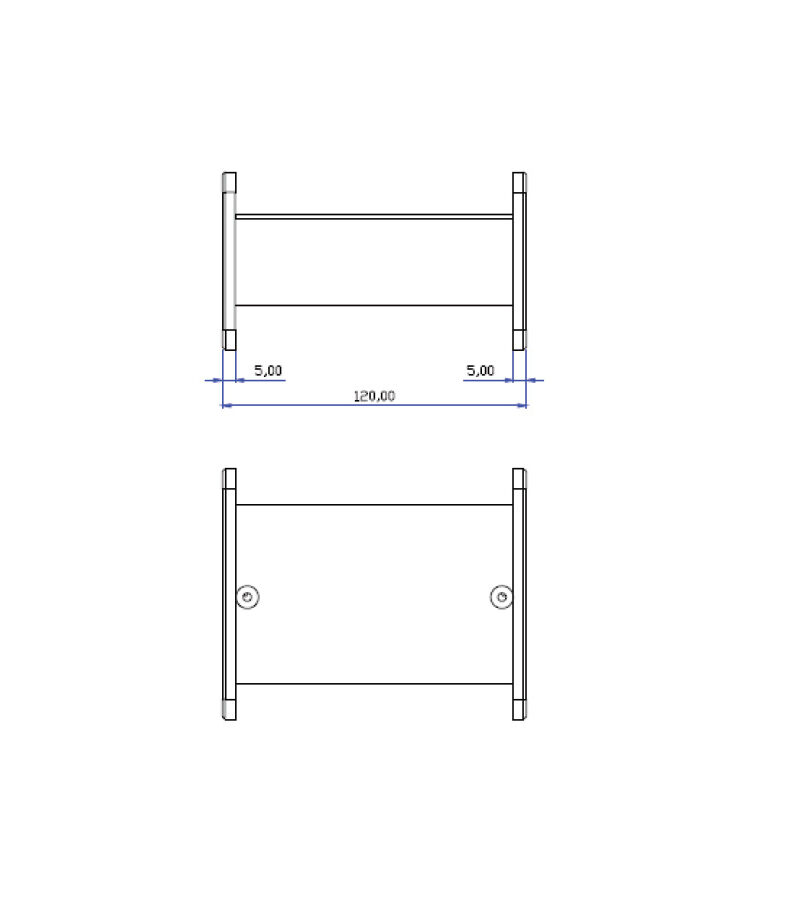

Dimensions: 120x100x70mm
FL-BPF/C2
Pass Range: 3.625 – 4.2 GHz
VSWR: 1.4:1 max
Insert Loss: 0.5dB max
Flange: CPR-229G In/Out
Dimensions: 120x100x70mm
FL-BPF/C4
Pass Range: 3.80 – 4.2 GHz
VSWR: 1.4:1 max
Insert Loss: 0.5dB max
Flange: CPR-229G In/Out
Dimensions: 120x100x70mm
| Weight | 1 kg |
|---|---|
| Dimensions | 12 × 14 × 8 cm |
| Bandpass | 3.625 – 4.2 GHz, 3.7 – 4.2 GHZ, 3.8 – 4.2 GHz |
Available downloads for this item:
Click to view - Product DATA Sheet
