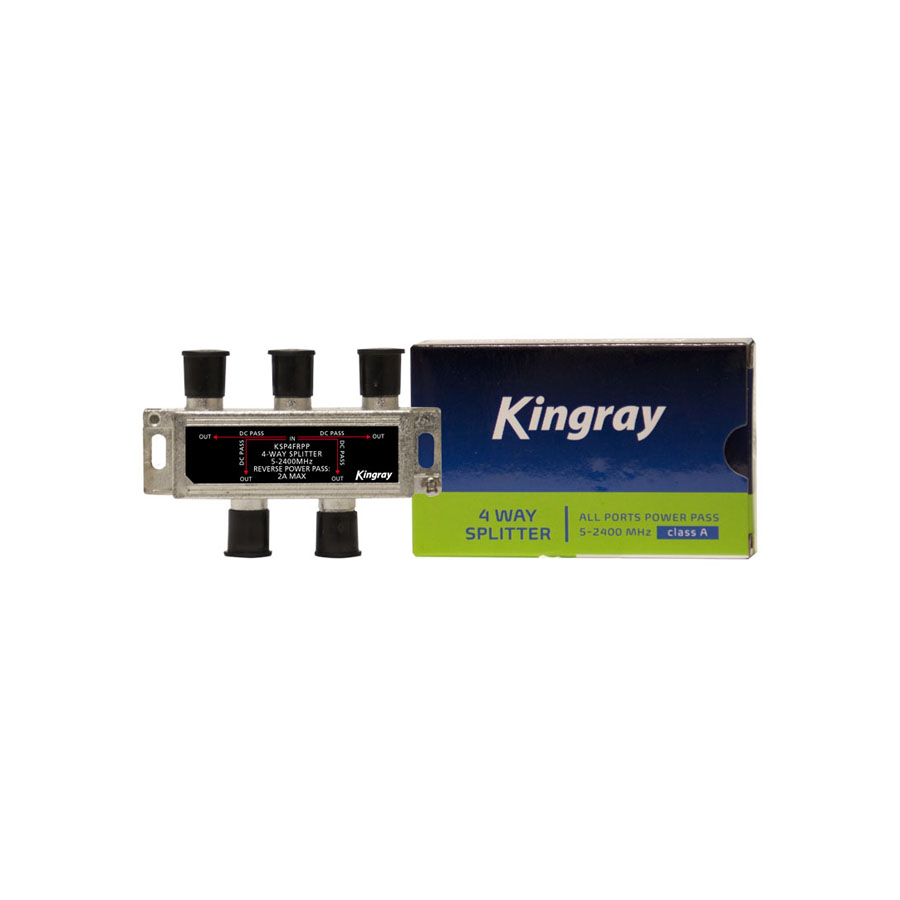

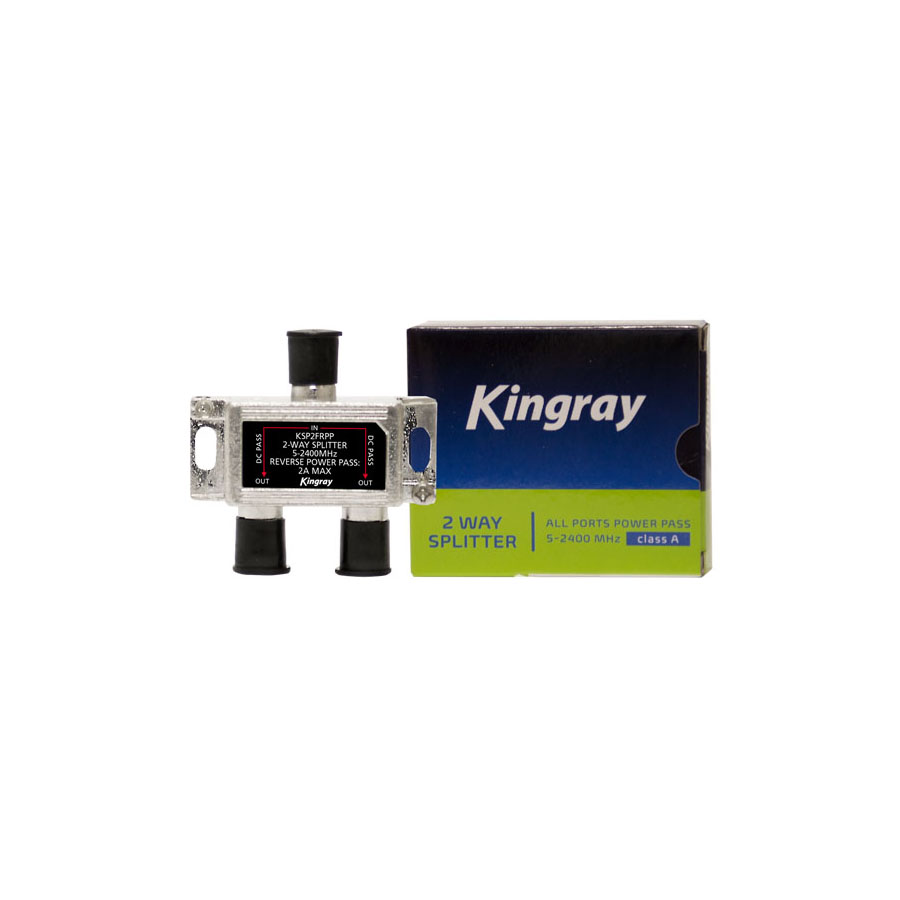

Kingray KSPxFRPP 2 & 4 Way F-type Splitter 5-2400MHz REVERSE P/Pass All Ports
$7.70 – $11.00
Kingray KDPTSF FOXTEL “Stacker & TDT Approved – 2 & 4 Way F-type Splitter 5-2400 MHz Reverse Power Pass.  KSP2FRPP, KSP4FRPPÂ
The KSP2FRPP & KSP4FRPP have been specifically designed for use in a multistacker system. With these splitters, it allows the installer to power up to 4 active taps remotely with the use of a PIK2400 & a PSK124F to provide power.
- 2 & 4 Way F-tType Splitters with Reverse Power Pass
- Foxtel Approved
- 5-2400 MHz
- Reverse Power Pass – In to Out Ports
FOXTELÂ STACKER
& TDTÂ Approved
F30998, F30997
|
|
5~40MHz | 40~1000MHz | 1000~1750MHz |
1750~2400MHz |
||||
|
|
Insertion Loss (dB) |
Return Loss (dB) |
Insertion Loss (dB) |
Return Loss (dB) |
Insertion Loss (dB) |
Return Loss (dB) |
Insertion Loss (dB) |
Return |
| S-KSP2FRPP |
≤4.0 |
≥10 | ≤4.5 | ≥10 | ≤5.0 | ≥10 | ≤5.5 |
≥10 |
| S-KSP4FRPP |
≤8.0 |
≥10 | ≤8.5 | ≥10 | ≤10.0 | ≥10 | ≤10.5 |
≥10 |
| Weight | 0.0 kg |
|---|---|
| Dimensions | 0.0 × 0.0 × 0.0 cm |
| Splitters | 2 Way, 4 Way |
