Kingray KSPxF FOXTEL “Stacker & TDT Approved – 2, 3, 4, 6 & 8 Way F Type Splitters 5-2400 MHz Power Pass All Ports KSP2F, KSP3F, KSP4F, KSP6f, KSP8F
The Kingray KSPxF series of splitters are designed for peak performance across the entire terrestrial & satellite bands up to 2400 MHz.
These A class splitters are compact in design with excellent screening characteristics & are Foxtel Approved.
- 2, 3, 4, 6 & 8 Way F-type Splitters
- Foxtel Stacker & TDT Approved
- 5-2400 MHz
- Power Pass All Ports
FOXTELÂ STACKER
& TDTÂ ApprovedÂ
F30950, F30951,
F30952, F30964,
F30965
|
5~40MHz |
40~1000MHz | 1000~1750MHz |
1750~2400MHz |
||||
|
Insertion |
Return Loss (dB) |
Insertion Loss (dB) |
Return Loss (dB) |
Insertion Loss (dB) |
Return Loss (dB) |
Insertion Loss (dB) |
Return |
S-KSP2F |
≤4.0 | ≥10 | ≤4.5 | ≥10 | ≤5.0 | ≥10 | ≤5.5 | ≥10 |

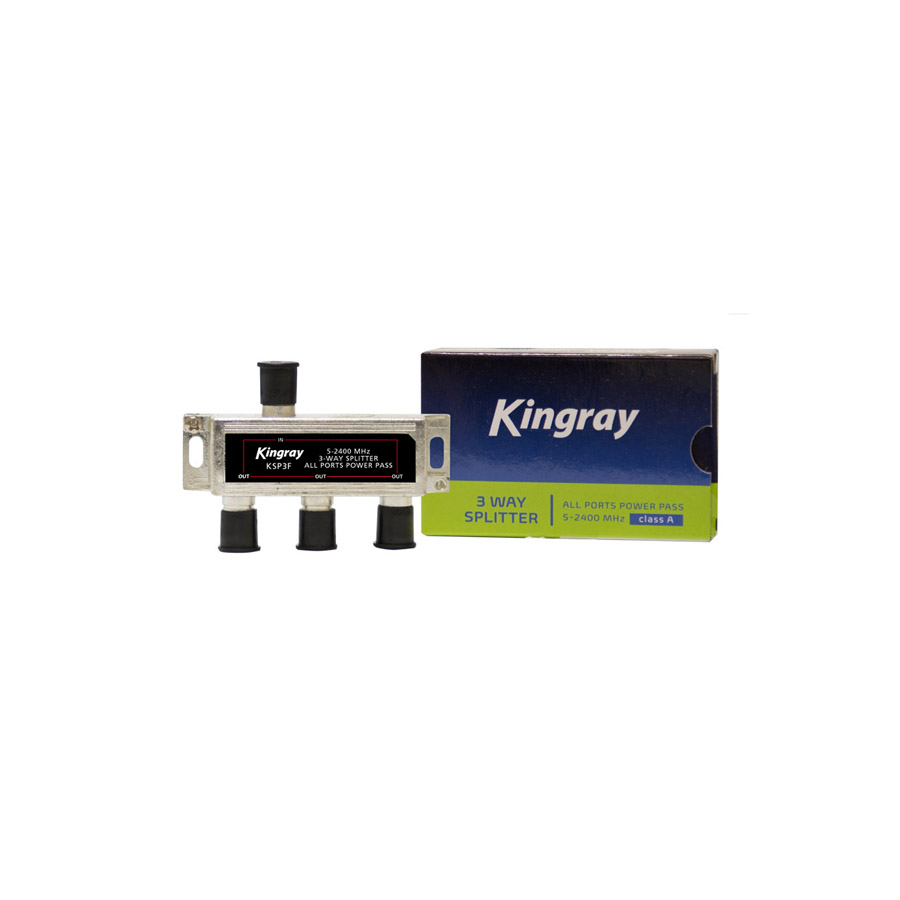

S-KSP3F |
≤7.5 |
≥10 | ≤8.0 | ≥10 | ≤9.5 | ≥10 | ≤10.0 |
≥10 |

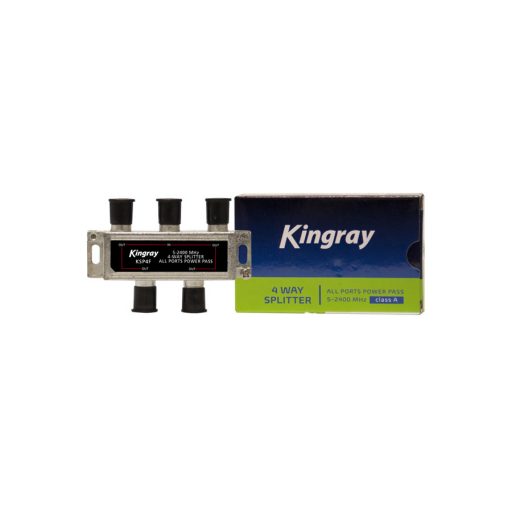

S-KSP4F |
≤8.0 |
≥10 | ≤8.5 | ≥10 | ≤10.0 | ≥10 | ≤10.5 |
≥10 |

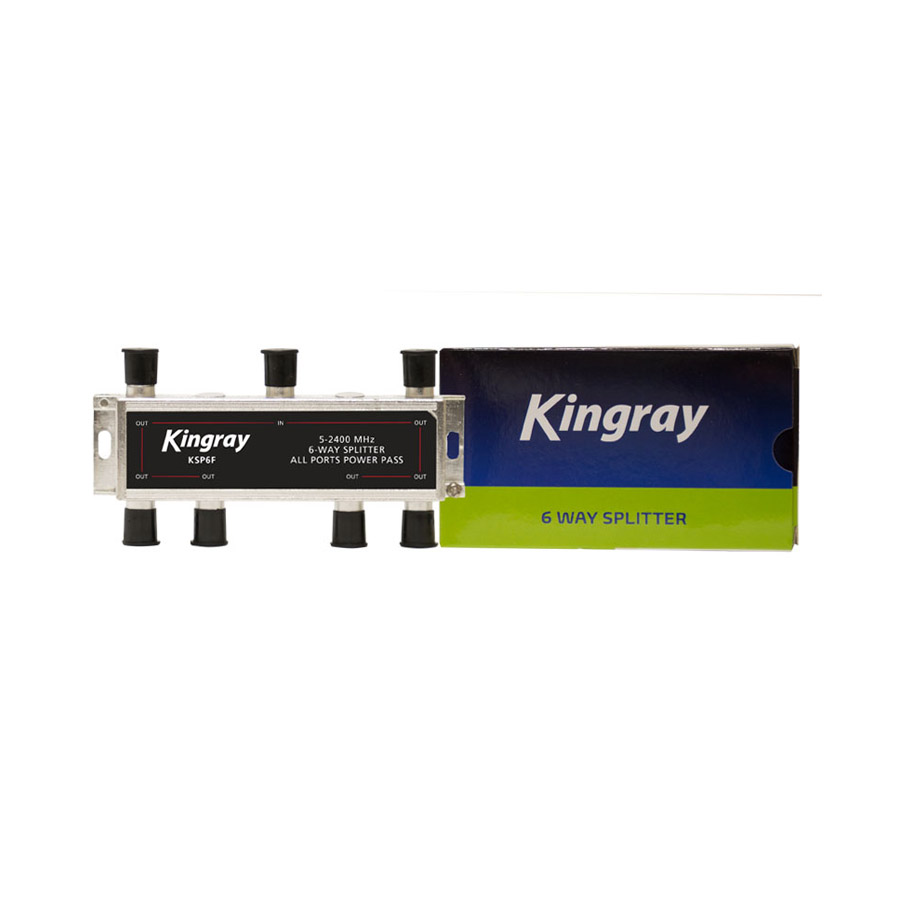

S-KSP6F |
≤11.0 |
≥10 | ≤12.0 | ≥10 | ≤13.0 | ≥10 | ≤15.0 |
≥10 |
S-KSP8F |
≤11.0 | ≥10 | ≤12.0 | ≥10 | ≤13.0 | ≥10 | ≤15.0 |
≥10 |
