Jonsa Optical Fibre Receiver 1550nm with EPON, GPON, XGPON Pass High Outpt
$302.50 Inc. GST

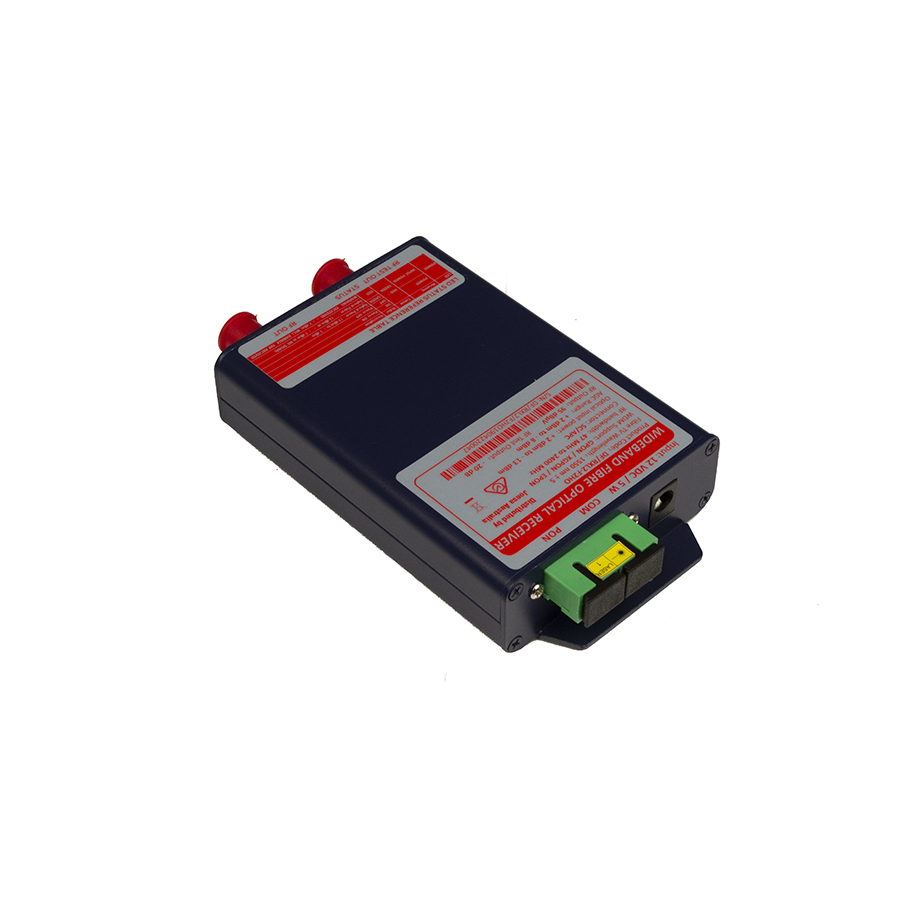

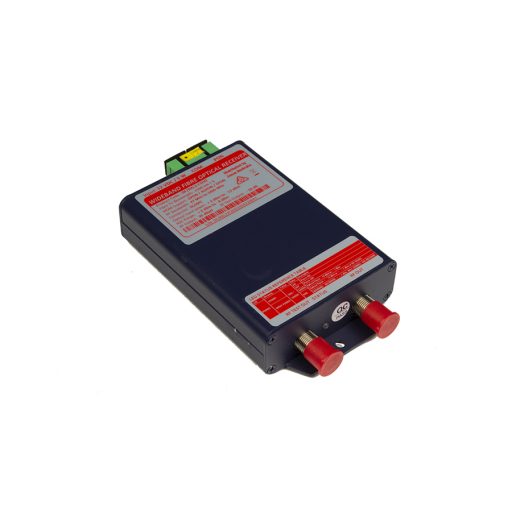

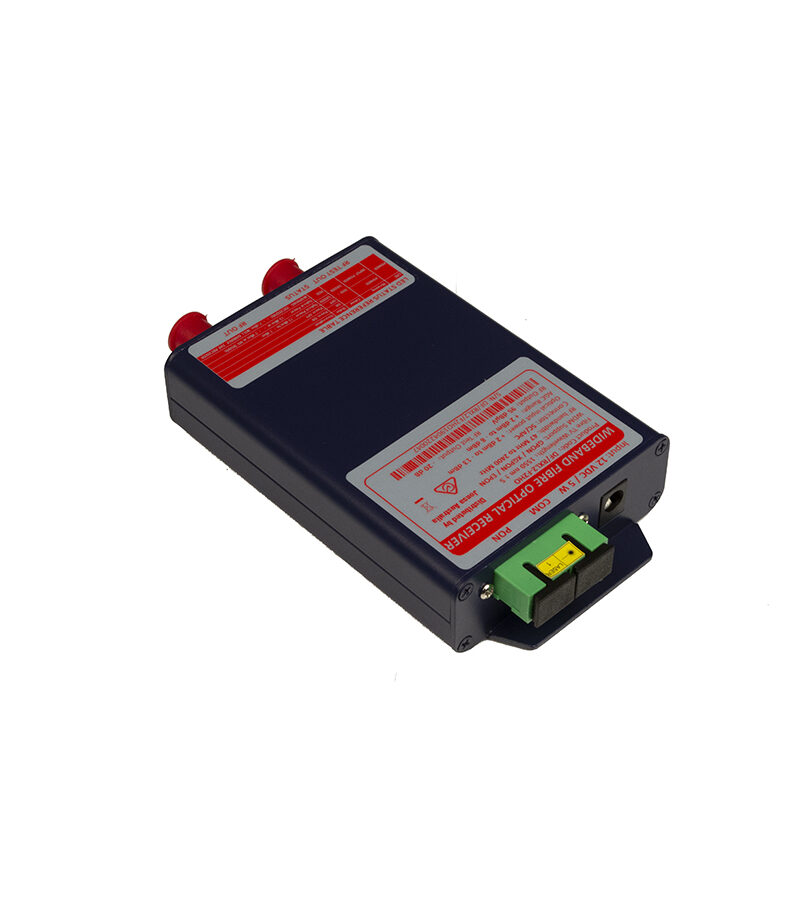

Jonsa DF/RXL2-F2HO Optical Fibre Receiver 1550nm wit EPON, GPON, XGPON Pass High Output (95dB) RF
Features
- Operating wavelength at 1550 nm
- Input +2dBm to -8dBm
- SC/APC Connection
- Output 95dB 47…2400MHz with Test Port
- WDM pass EPON, GPON, XGPON
- Built in AGC (Automatic Gain Control)
- Wall or Desk mount design for simple installation
- High quality metal housing with LED indicator
- Low power consumption• Compatible with FTTx PON
- Includes Power Supply
| Weight | 0.4 kg |
|---|---|
| Dimensions | 22 × 11 × 5 cm |
Available downloads for this item:
Click to view - Product DATA Sheet
