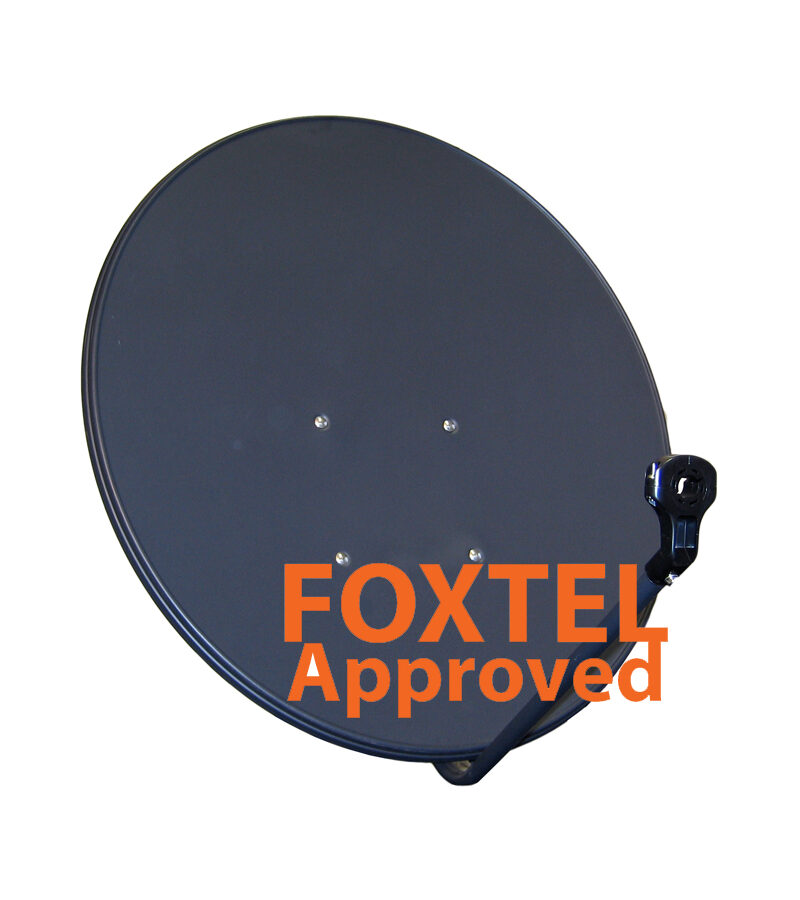

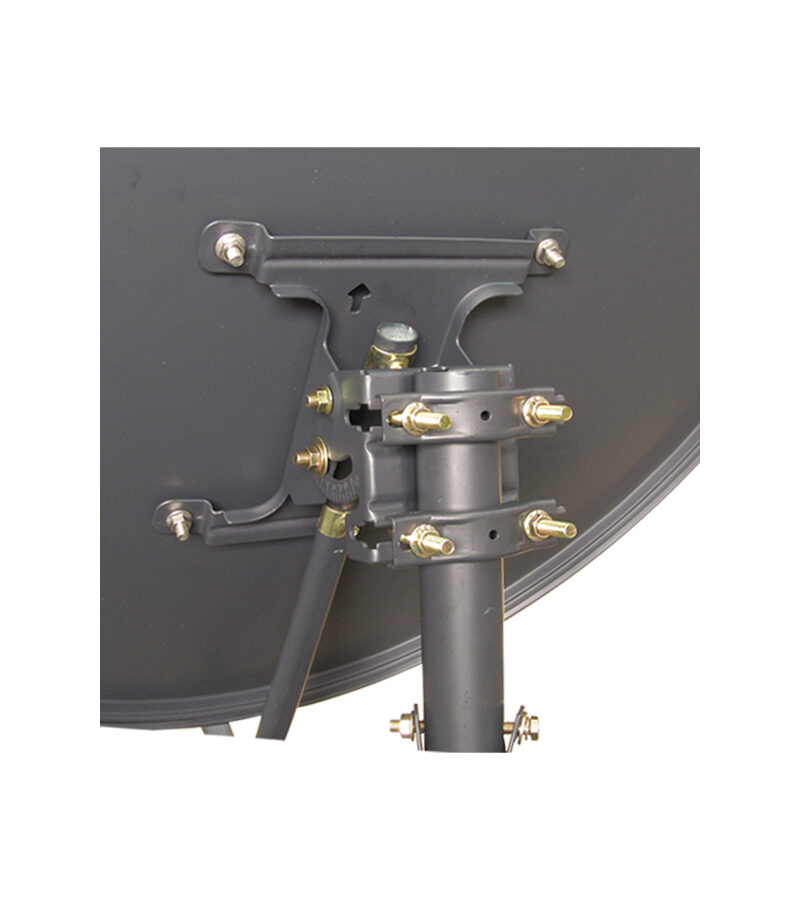

Jonsa 85cm Offset 4 Pack (Charcoal) with Az/El Mount, FOXTEL Approved F10126
$642.40 Inc. GST
JONSA SDJ85 Offset Satellite Dish for Ku-band Satellite Reception – FOXTEL Approved F30126
4 Pack Carton Packaging – Four complete dishes ready for transit
- FOXTEL Approved with ACER LNB
- Height 93.6cm x Width 85cm
- Charcoal powder coat finish
- Single Feed Support
- 40mm Diameter LNB Clamp
- Elevation Range:
Setting 1 – 0~85 degrees - Offset angle – 24.6 degrees
- Frequency range:Â 10.7 – 12.75 GHz
- Gain @ 12.5GHz: Â 41dBi
- Mast bracket diameter: 40… 60mm
FOXTELÂ ApprovedÂ
F30126
| Weight | 30 kg |
|---|---|
| Dimensions | 100 × 102 × 16 cm |
Available downloads for this item:
Click to view - Product DATA Sheet - Standard 5-Wire Amplifier
Click to view - Product Assembly Schematic– High OUTPUT 5-Wire Amplifier
