HILLS Tru-Band Plus Passive “Black Arrow” Combo UHF/VHF-4G
$141.90 Inc. GST

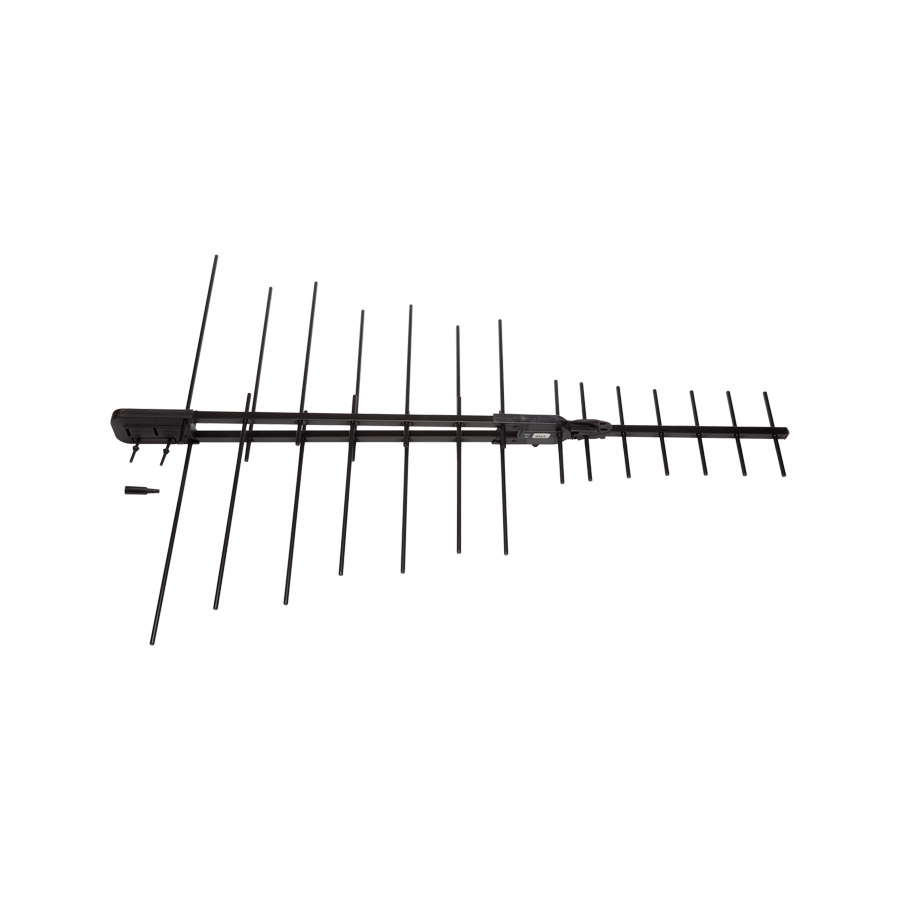

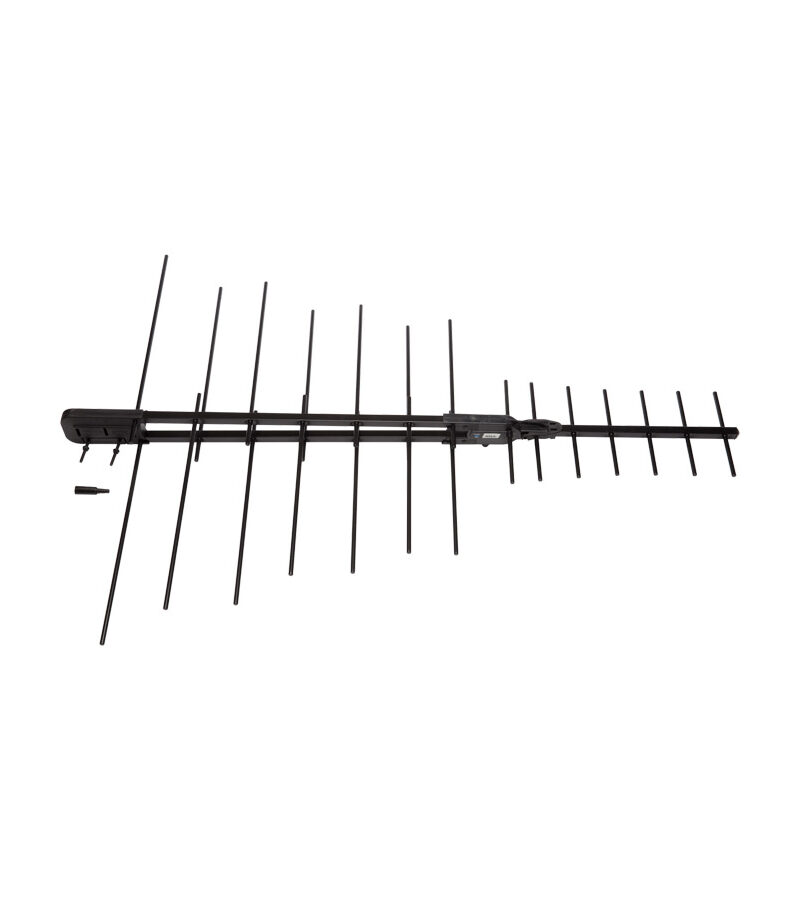

HILLS FB608582-4G Tru-Band Plus Passive “Black Arrow” Combination UHF/VHF 4G Filtered Antenna
- Designed for the precise digital frequency bands for true HD performance
- BoomLock™ manufacturing technology – patented by Hills
- Sensational all-black finish for low visual impact
- New mounting clamp for quicker and safer installation
- Channels 6 – 12, 28 – 38
- 4G filter included
- Matched diplexer-balun rejects out-of-band interference for minimal picture break-up
- Ultrasonically sealed balun prevents water ingress for maximum reliability
- Strong mechanical construction
- Lightweight and compact
- Fully designed and manufactured in Australia. Registered design
Specifications
| Name | Value |
|---|---|
| Channels | 6 – 12 / 28 – 38 |
| Gain (dB) | 7 – 9 / 7 – 10 |
| F/B Ratio (dB) | 13 – 15 / 16 – 20 |
| Connector | F Type |
| Balun | PCB Diplexer |
| Ultrasonically sealed balun | Yes |
| Reflector | Single Element |
| Weight | 2 kg |
|---|---|
| Dimensions | 88 × 91 × 9 cm |
Available downloads for this item:
Click to view - Product DATA Sheet
Click to view - Product Installation Manual
