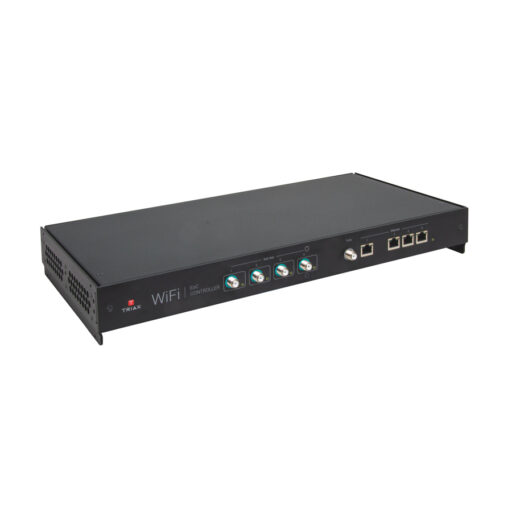

Triax 383105 Ethernet Over Coax (EoC) 64/4 B Wi-Fi & TV End Point Controller Unit

Triax 383105 EoC/64C-WiFi Ethernet Over Coax (EoC) 64/4 MC End Point Controller Unit integrates Wi-Fi & LAN delivery using an existing coaxial TV network.

The EoC controller is used as the main unit to control up to 64 endpoints either Wi-Fi or Non-Wi-Fi in an EoC system. The controller acts as both an L2 switch for ethernet and as a media converter from ethernet to coax and back to ethernet, allowing both TV and data signals to use the same coax cable. Provided that G.hn and TV signals are controlled within the frequency ranges mentioned below. Combining of up to 64 Endpoints is possible on same COAX.

Main features:

• G.hn for data on 1-200 MHz
• TV on 300-862 MHz
• 4x ethernet port
• Combining up to 64 EP’s on same COAX
• 4x coax EoC out ports, (4 x 16 EP’s) supports port bundling
• 1x coax TV in port
• Supports VLAN tagging
• Includes Loaded Wi-Fi License Key for Wi-Fi End Points
• Status LED’s on front
